Drawing with Miniworlds – Basics#

Foreword#

This tutorial is heavily inspired by the fantastic lecture notes by Prof. Dr. Michael Kipp: https://michaelkipp.de/processing/, which are based on Processing.

The Miniworlds version of Processing borrows several ideas and concepts but implements them in slightly different ways. In this tutorial, you’ll learn programming with Miniworlds using its Processing mode, which is modeled after the popular visual programming environment.

How Does Drawing Work on a Computer?#

Monitors consist of a grid of tiny squares. These are so small they appear as points to us. These tiny squares are called pixels.

Pixels are arranged in a coordinate system, which usually starts in the top-left corner:

coordinates

Note

Computer scientists usually start counting at 0.
That means the top-left corner is (0, 0), and if the screen is 800×600 pixels, the bottom-right corner is (799, 599).

The First Program#

A Miniworlds program typically consists of the following parts:

from miniworlds import *
world = World()

# Your code here

world.run()

  • Line 1: Imports the Miniworlds library

  • Line 2: Creates the game world

  • Last line: Starts the main loop with world.run() – this must always be the final line of your program

Everything in between can be your own code or comments. Comments start with # and are ignored by the computer. They are written for humans to help understand the code.

Example:

from miniworlds import *

world = World()

Point((10, 10))

world.run()

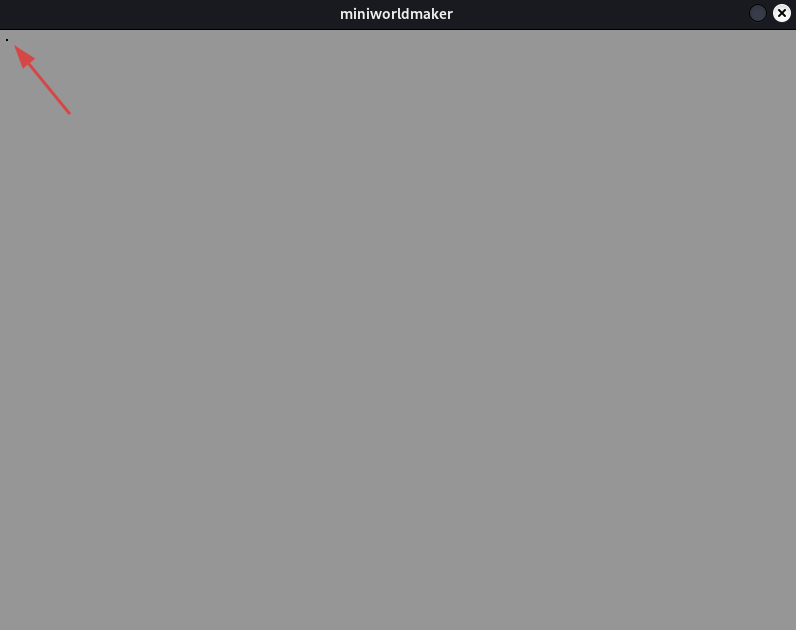

A pixel

You can also set the window size by passing width and height to World:

from miniworlds import *

world = World(200, 400)
world.run()

Drawing Basic Shapes#

Lines#

Syntax:

Line(startpoint, endpoint)

Both startpoint and endpoint are tuples, e.g., (1, 2).

Draw a line from (10, 10) to (100, 200):

from miniworlds import *

world = World()
Line((10, 10), (100, 200))
world.run()

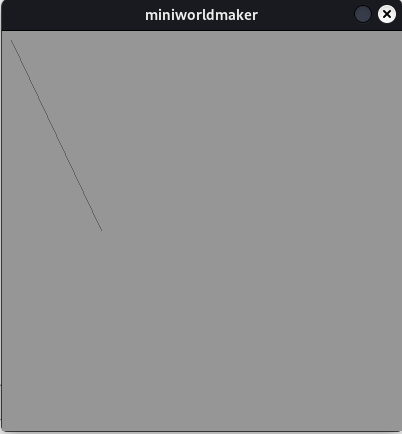

A line

Circles#

Circle(position, radius)

Note

The position refers to the center of the circle.

Example:

from miniworlds import *

world = World()
Circle((100, 200), 20)
world.run()

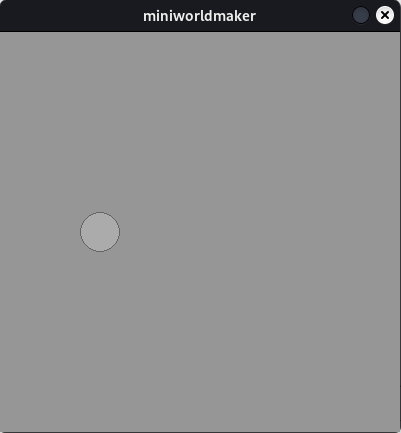

A circle

Rectangles#

Rectangle(position, width, height)

  • position is the center corner of the rectangle

Example:

from miniworlds import *

world = World()
Rectangle((100, 100), 20, 100)
world.run()

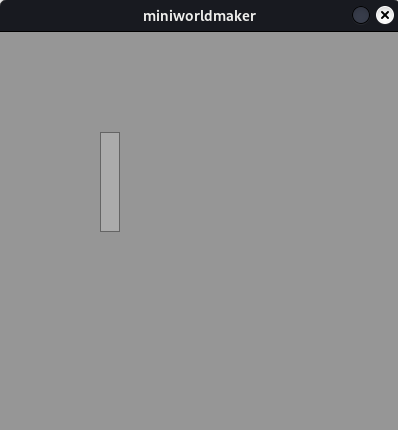

A rectangle

It is often easier to draw a rectangle starting from the top-left position. You can do this with the method from_center:

Rectangle.from_center((100, 100), 20, 100)

Ellipses#

Ellipse(position, width, height)

Like rectangles, but the shape is oval and fits inside the given rectangle.

Example:

from miniworlds import *

world = World()
Ellipse((100, 100), 20, 100)
world.run()

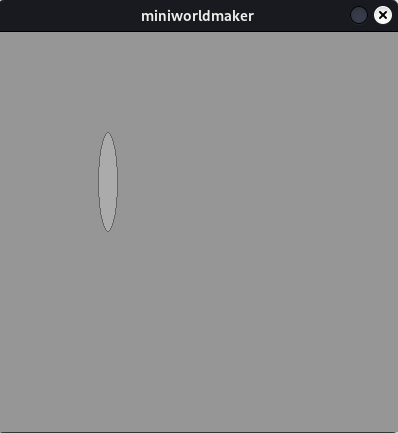

An ellipse

Centered Rectangles and Ellipses#

1. from_center#

Use .from_center() to draw an ellipse centered on a point:

from miniworlds import *

world = World()
Ellipse.from_center((50, 100), 100, 200)
world.run()

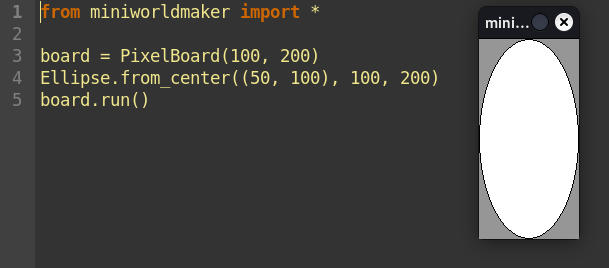

from_center Method

2. Using .center#

You can manually center an ellipse like this:

from miniworlds import *

world = World()
ellipse = Ellipse((0, 0), 100, 200)
ellipse.center = (50, 100)
world.run()

More Complex Shapes#

Arcs#

Arc(position, width, height, start_angle, end_angle)

  • position: center of bounding box

  • width and height: ellipse size

  • start_angle, end_angle: angles in degrees, counterclockwise from the right

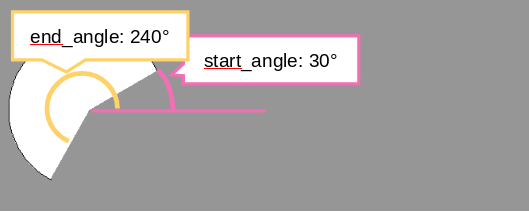

Arc - Start and Endangle

Example:

from miniworlds import *

world = World()
Arc.from_center((200, 200), 200, 200, 30, 242)
world.run()

Triangle#

Triangle(p1, p2, p3)

Each point is a tuple like (x, y).

Example:

from miniworlds import *

world = World()
Triangle((10, 10), (100, 100), (200, 10))
world.run()

Polygon#

Polygon(pointlist)

pointlist is a list of tuples. For example, a triangle as a polygon:

from miniworlds import *

world = World()
Polygon([(10, 10), (100, 100), (200, 10)])
world.run()

🧠 Training Exercises#

Exercise 1.1 – House with Shapes#

Draw a house using basic shapes:

House

Solution hint
from miniworlds import *

world = World()
world.size = (120, 210)
Rectangle((10, 100), 100, 100)
Triangle((10, 100), (60, 50), (110, 100))

world.run()

Exercise 1.2 – Face#

Draw a face using basic shapes:

Face

Solution hint
from miniworlds import *
import random

world = World()
world.size = (100, 100)

Circle.from_center((50, 50), 50)
Arc.from_center((50, 80), 40, 20, 180, 360)
Circle.from_center((30, 30), 10)
Circle.from_center((70, 30), 10)
Line((50, 50), (50, 70))

world.run()
