Actor

Actors can communicate through messages when this is easier to read than passing object references around.

Combine send_message(...) with @register_message("...") for simple, beginner-friendly event flows between actor classes.

API Reference

class miniworlds.actors.actor.Actor(position=(0, 0), *args, **kwargs)

Interactive object placed in a world.

Actors can move, detect collisions, send messages, and react to input and lifecycle events.

Examples

Create a basic actor:

from miniworlds import World, Actor world = World(100, 60) Actor((10, 10), world=world) world.run()

Create an actor with a costume:

from miniworlds import World, Actor world = World(100, 60) player = Actor((10, 10), world=world) player.add_costume(“images/player.png”) world.run()

See also

• Actor API page

• Shapes API page

• Text actor API page

Public Data Attributes:

actor_count
class_image
origin	Current origin mode used for size and position operations.
collision_type	collision_type specifies how collisions should be checked:
is_blockable	A actor with the property is_blockable cannot move through actors with the property is_blocking.
is_blocking	A actor with the property is_blockable cannot move through actors with the property is_blocking.
layer	Defines the layer on which the actor is drawn if several actors overlap.
last_position	Actor position in last frame
last_direction	Direction value from the previous frame.
costume_count	Returns number of costumes of actor, 0 if actor has no costume
is_flipped	Whether the actor costume is mirrored on the horizontal axis.
costume	Gets the costume of the actor, if available.
costumes	Gets the costume manager
orientation	Costume orientation offset in degrees.

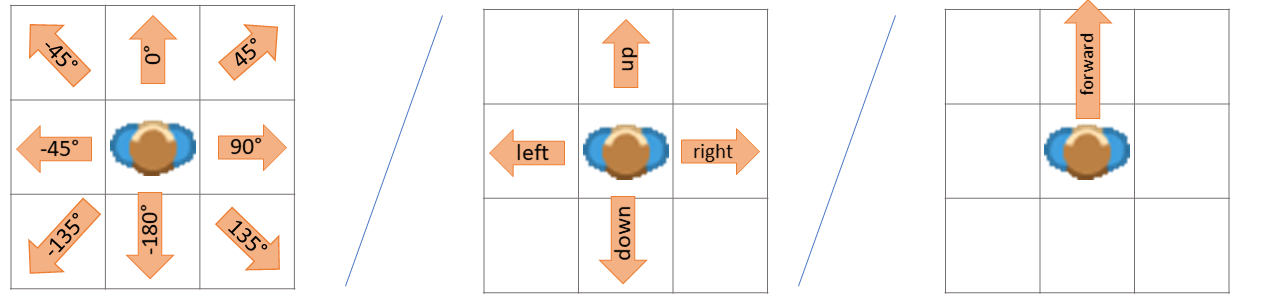

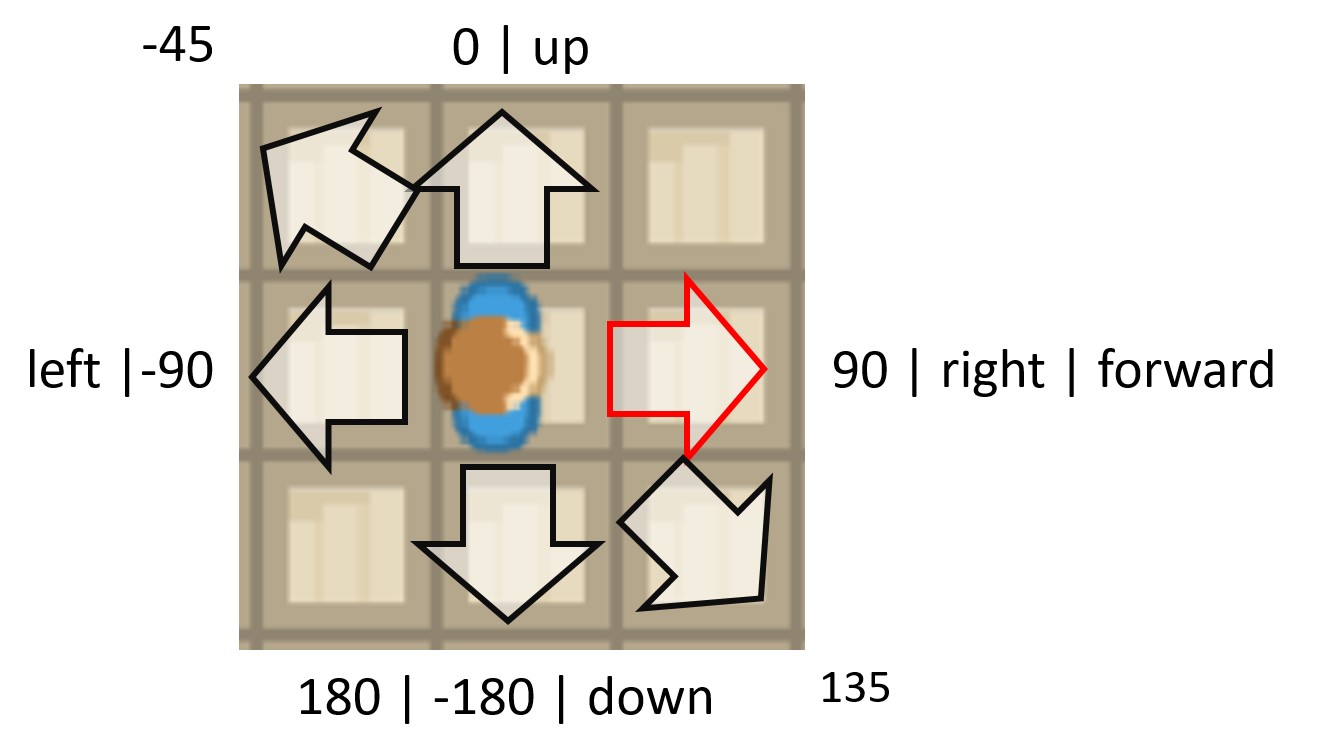

direction	Directions are handled exactly as in the Scratch programming language, see: Scratch Wiki
direction_at_unit_circle	Gets the direction as value in unit circle (0° right, 90° top, 180° left...)
size	Size of the actor

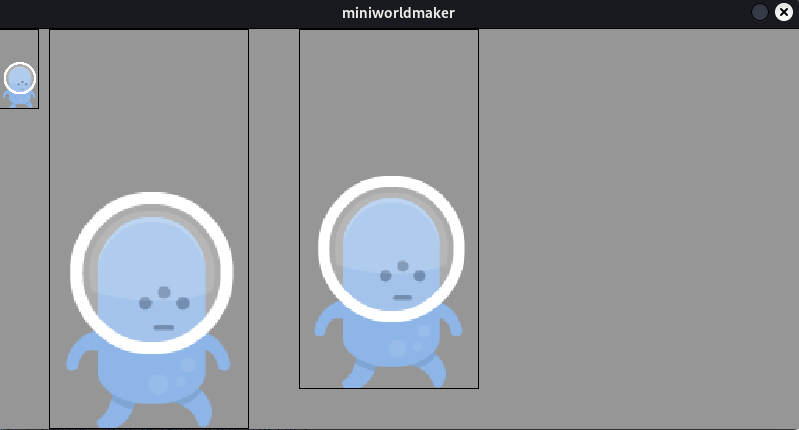

width	The width of the actor in pixels.
height	The height of the actor in pixels.
x	The x-value of a actor
y	The y-value of a actor
class_name	Class name of this actor instance.
topleft_x	x-value of actor topleft-position
topleft_y	y-value of actor topleft-position
topleft	Top-left position of the actor in world coordinates.
local_center	x-value of actor center-position inside the current camera-screen
center_x	x-value of actor center-position
center_y	y-value of actor center-position
center	Center position of the actor in world coordinates.
is_rotatable	Defines if the costume of a actor should be rotatable.
static	Should actor react to events? You can turn this option off for additional performance boost.
fill_color	Fill color of the actor as RGBA tuple.
color	Fill color of the actor as RGBA tuple.
is_filled	Is actor filled with color?
border_color	Border color as RGBA tuple.
stroke_color	Border color as RGBA tuple.
border	Border width of the actor.
visible	Whether the actor is currently visible.
world	World this actor belongs to.
image	The image of the actor:
position	The position of the actor as Position(x, y)

Inherited from ActorBase

dirty	If actor is dirty, it will be repainted.
rect	The surrounding Rectangle as pygame.Rect.
position_manager
sensor_manager
costume_manager

Inherited from DirtySprite

visible	You can make this sprite disappear without removing it from the group assign 0 for invisible and 1 for visible
layer	Layer property can only be set before the sprite is added to a group, after that it is read only and a sprite's layer in a group should be set via the group's change_layer() method.

Inherited from Sprite

rect
layer	Dynamic, read only property for protected _layer attribute.

Public Methods:

__init__([position])
switch_origin(value)	Switch actor origin while preserving the visual on-screen position.
create_on_world(world)	Creates a actor to a specific world
from_topleft(topleft_position, *args, **kwargs)	Create an actor whose origin is interpreted as top-left.
from_center(center_position, *args, **kwargs)	Create an actor whose origin is interpreted as center.

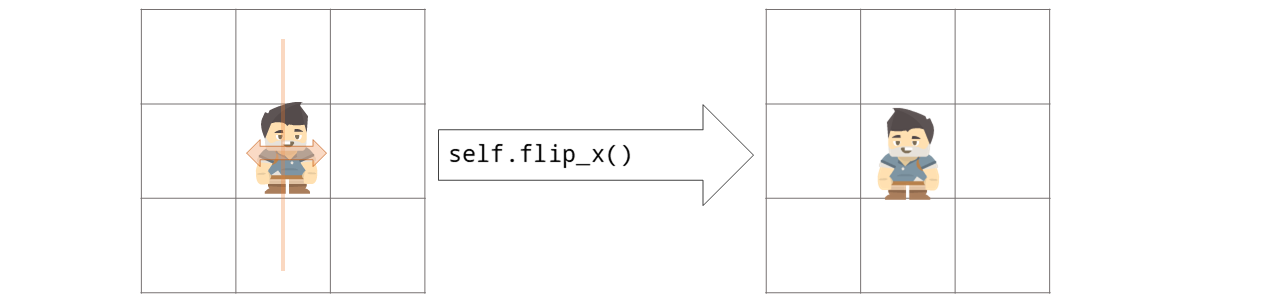

flip_x()	Flips the actor by 180° degrees.
add_costume([source])	Adds a new costume to actor.
add_costumes(sources)	Adds multiple costumes
remove_costume([source])	Removes a costume from actor
switch_costume(source)	Switches the costume of actor
set_costume(costume)	Set the current costume from an index, source, or appearance object.
reset_costumes()	Remove all costumes and reset appearance state.
set_background_color(color)	Set a background color behind the actor costume image.
next_costume()	Switches to the next costume of actor
has_costume()	Return True when the actor currently has a costume.

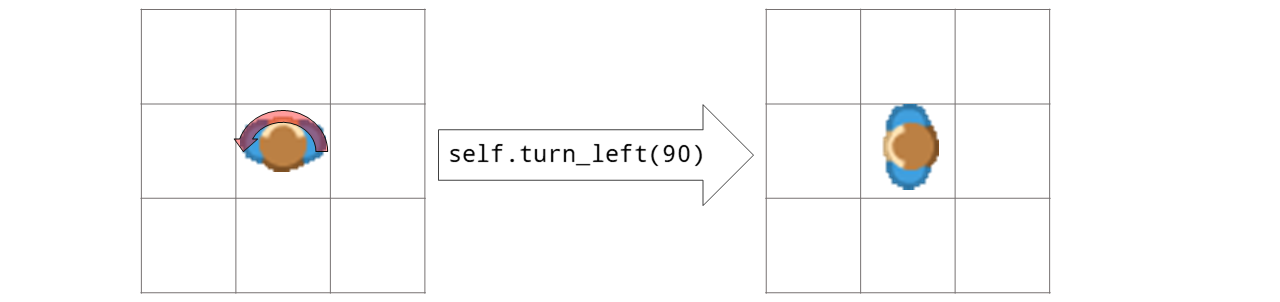

turn_left([degrees])	Turns actor by degrees degrees left :rtype: int

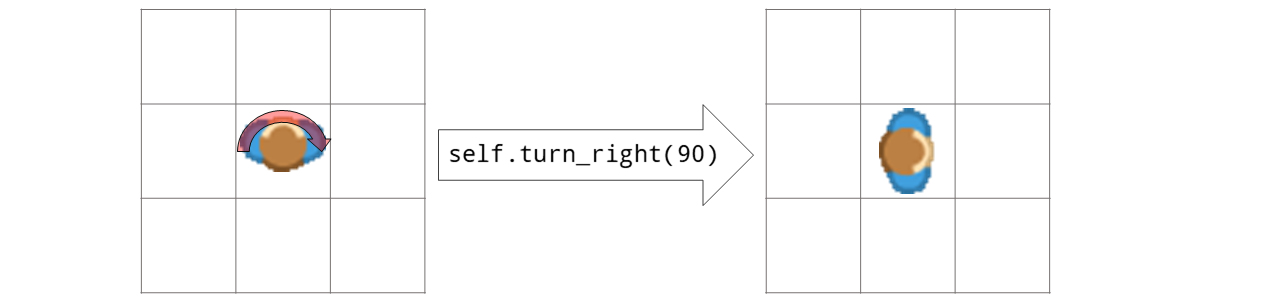

turn_right([degrees])	Turns actor by degrees degrees right
set_direction(direction)	Actor points in given direction.
point_towards_position(destination)	Actor points towards a given position
point_towards_actor(other)	Actor points towards another actor.
set_size(value)	Set actor size as (width, height) in pixels.
scale_width(value)	Scale actor width by a factor.
scale_height(value)	Scale actor height by a factor.

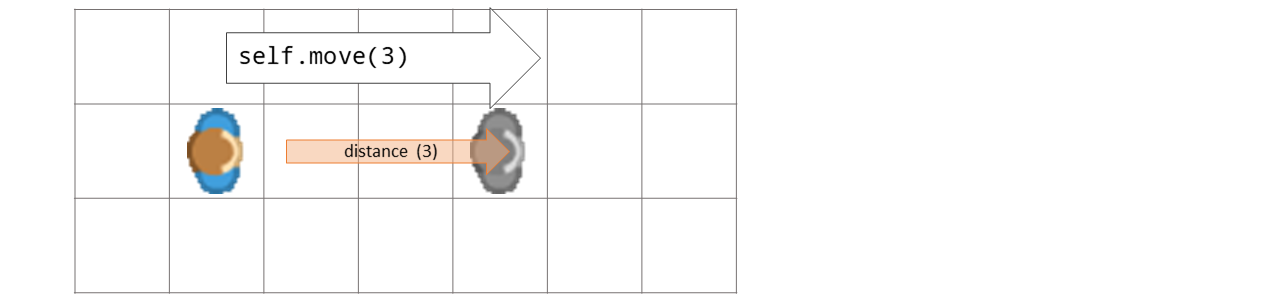

move([distance, direction])	Moves actor distance steps in current direction
move_vector(vector)	Moves actor in direction defined by the vector

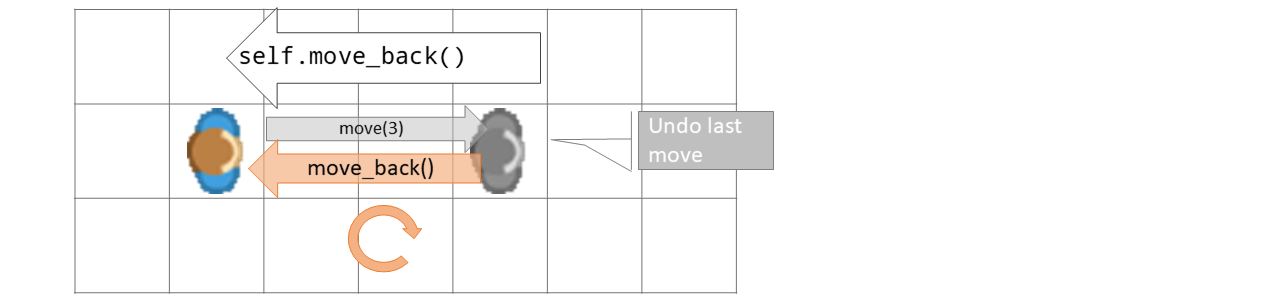

move_back(distance)	Moves the actor backward by distance steps (opposite of current direction).
undo_move()	Undo the last move.
move_towards(target)	Move one step toward a target actor or position.

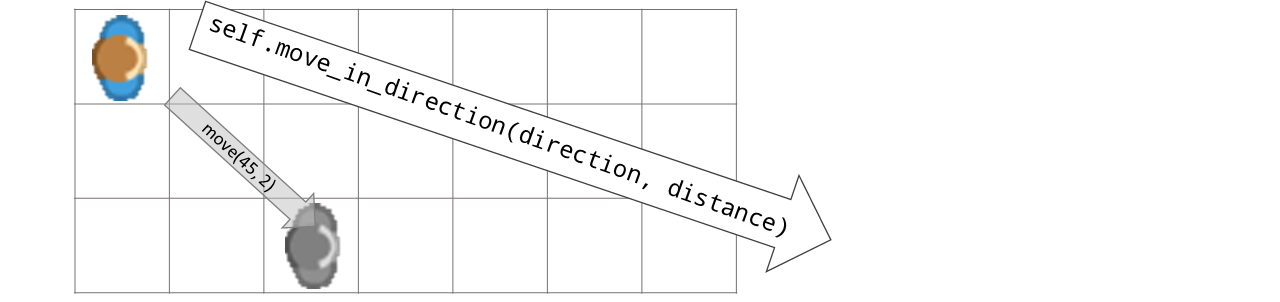

move_in_direction(direction[, distance])	Moves actor distance steps into a direction or towards a position

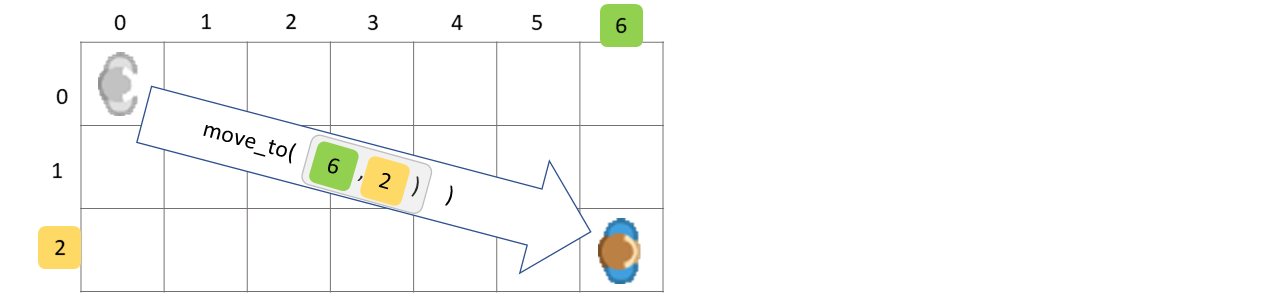

move_to(position)	Moves actor distance to a specific world_posiition
remove([kill])	Removes this actor from world
before_remove()	Hook called immediately before the actor is removed from the world.
bounce_from_border(borders)	The actor "bounces" from a border.
detect_all([actors, direction, distance])	Detects if actors are on actor position.
detect(*args, **kwargs)	Detects if actors are on actor position.
detect_borders([distance])	Detects borders
detect_left_border()	Does the actor touch the left border?
detect_right_border()	Does the actor touch the right border?
detect_top_border()	Does the actor touch the top border?
detecting_bottom_border()	Does the actor touch the lower border?
detect_color([color])	Detects colors in world-background at actor center-position
detect_color_at([direction, distance])	Detects colors in world-background at actor-position
detect_actors_at([direction, distance, actors])	Detects a actor in given direction and distance.
detect_actor_at([direction, distance, actors])	Detect and return the first actor at a given direction and distance.
detect_actors_in_front([actors, distance])	Detect all actors directly in front of this actor.
detect_actor_in_front([actors, distance])	Detect and return the first actor directly in front.
detect_point(position)	Is the actor colliding with a specific (global) point?
detect_pixel(position)	Is the actor colliding with a pixel?
detect_rect(rect)	Is the actor colliding with a static rect?
is_inside_world()	Checks whether the actor is completely inside the world boundaries.
bounce_from_actor(other)	Reflect movement direction when colliding with another actor.
animate([speed])	Animate the current costume with the given speed.
animate_costume(costume[, speed])	Animate a specific costume with the given speed.
animate_loop([speed])	Animates a costume with a looping animation
stop_animation()	Stops current animation.
send_message(message)	Sends a message to world.
on_key_down(key)	Called once when a key is pressed.
on_key_pressed(key)	Called repeatedly every frame while a key is held down.
on_key_up(key)	Called once when a previously pressed key is released.
on_mouse_over(position)	Called when the mouse cursor enters or moves over the actor area.
on_mouse_leave(position)	Called when the mouse cursor leaves the actor area.
on_mouse_left_down(position)	Called when the left mouse button is pressed down.
on_mouse_right_down(position)	Called when the right mouse button is pressed down.
on_mouse_left(position)	Called when the left mouse button is clicked.
on_mouse_right(position)	Called when the right mouse button is clicked.
on_mouse_motion(position)	Called when the mouse moves.
on_mouse_left_released(position)	Method is called when left mouse key is released.
on_mouse_right_released(position)	Method is called when right mouse key is released.
on_clicked_left(position)	The mouse is on top of a actor and mouse was clicked.
on_clicked_right(position)	The mouse is on top of a actor and mouse was clicked.
on_detecting_world()	on_detecting_world is called, when actor is on the world
on_not_detecting_world()	Called when the actor is not touching the world (i.e. outside world bounds).
on_detecting_actor(actor)	on_detecting_actor is called, when actor is detects a actor on same position
on_detecting_borders(borders)	on_detecting_border is called, when actor is near a border
fill(value)	Set fill color for borders and lines
hide()	Hides a actor (the actor will be invisible)
show()	Displays a actor ( an invisible actor will be visible)
register_sensor(*args, **kwargs)	This method is used for the @register_sensor decorator.
get_local_rect()	Return actor rect in camera-local coordinates.
set_world(new_world)	Move the actor to another world and return the actor.
new_costume()	Create and attach a new empty costume to this actor.
set_position(value)	Set actor position in world coordinates.
get_distance_to(obj)	Gets the distance to another actor or a position
on_shape_change()	Hook called when actor shape-related properties change.

Inherited from ActorBase

register(method[, force, name])	This method is used for the @register decorator.
register_message(*args, **kwargs)	Registers a method to an object to handle specific on_message events.
__str__()	Return str(self).
get_costume_class()

Inherited from DirtySprite

__init__(*groups)
__repr__()	Return repr(self).

Inherited from Sprite

__init__(*groups)
add(*groups)	add the sprite to groups
remove(*groups)	remove the sprite from groups
add_internal(group)	For adding this sprite to a group internally.
remove_internal(group)	For removing this sprite from a group internally.
update(*args, **kwargs)	method to control sprite behavior
kill()	remove the Sprite from all Groups
groups()	list of Groups that contain this Sprite
alive()	does the sprite belong to any groups
__repr__()	Return repr(self).

Private Data Attributes:

_abc_impl
__image
__rect

Inherited from ActorBase

_abc_impl

Private Methods:

_get_initialization_facade()
_get_appearance_facade()
_get_event_facade()
_get_sensor_facade()
_get_movement_facade()
_get_size_facade()
_validate_arguments(position, *args, **kwargs)

Inherited from ActorBase

_is_actor_repainted()

Inherited from DirtySprite

_set_visible(val)	set the visible value (0 or 1) and makes the sprite dirty
_get_visible()	return the visible value of that sprite

---

actor_count: int = 0

add_costume(source=None)

Adds a new costume to actor. The costume can be switched with self.switch_costume(index)

Return type:

Costume

Parameters:

source – Path to the first image of new costume or Tuple with color-value

Examples

Add first costume from image:

from miniworlds import *

world = World(100,60))
actor = Actor((10,10))
costume = actor.add_costume("images/player.png")

world.run()

Output:

Add first costume from color:

from miniworlds import *

world = World(100,60))
actor = Actor((10,10))
costume = actor.add_costume((255,255,0))

world.run()

Output:

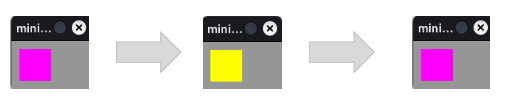

Create two costumes and switch between costumes

from miniworlds import *

world = World(100,60))
actor = Actor((10,10))
world.speed = 30
costume1 = actor.add_costume((255,255,0))
costume2 = actor.add_costume((255,0,255))
@actor.register
def act(self):
    if self.costume == costume1:
        self.switch_costume(costume2)
    else:
        self.switch_costume(costume1)

world.run()

Output:

Returns:

The new costume.

add_costumes(sources)

Adds multiple costumes

Return type:

Costume

animate(speed=10)

Animate the current costume with the given speed.

animate_costume(costume, speed=10)

Animate a specific costume with the given speed.

animate_loop(speed=10)

Animates a costume with a looping animation

Switches through all costume-images every speed-frame.

Examples

from miniworlds import *

world = World(columns=280, rows=100)
robo = Actor(position=(0, 0))
robo.costume.add_images(["images/1.png", "images/2.png","images/3.png","images/4.png"])
robo.size = (99, 99)
robo.animate_loop()
world.run()

Parameters:

speed (int, optional) – Every speed frame, the image is switched. Defaults to 10.

before_remove()

Hook called immediately before the actor is removed from the world.

property border

Border width of the actor.

A value of 0 means no border.

Notes

You can also configure borders via costume.border or world.default_border.

property border_color

Border color as RGBA tuple.

Notes

• Set Actor.border to a value greater than 0 for a visible border.

• Alias: Actor.stroke_color.

bounce_from_actor(other)

Reflect movement direction when colliding with another actor.

bounce_from_border(borders)

The actor “bounces” from a border.

The direction is set according to the principle input angle = output angle. :rtype: Actor

Note

You must check for borders first!

Parameters:

borders – A list of borders as strings e.g. [“left”, “right”]

Examples

from miniworlds import *
import random

world = World(150, 150)
actor = Actor((50,50))
actor.add_costume("images/ball.png")
actor.direction = 10

@actor.register
def act(self):
    self.move()
    borders = self.detecting_borders()
    if borders:
        self.bounce_from_border(borders)

world.run()

Output:

Returns:

The actor

property center: Tuple[float, float]

Center position of the actor in world coordinates.

property center_x: float

x-value of actor center-position

property center_y: float

y-value of actor center-position

class_image: str = ''

property class_name: str

Class name of this actor instance.

property collision_type: str

collision_type specifies how collisions should be checked:

• default: tile for Tiledworlds, ‘mask’ for Pixelworlds

• tile: Are actors on the same tile? (only TiledWorld)

• rect: Are actors colliding when checking their bounding - boxes? (Only PixelWorld)

• static-rect: Are actors colliding when checking circle with radius = bounding-box-radius.(Only PixelWorld)

• circle: Are actors colliding when checking circle with radius = bounding-box-radius.(Only PixelWorld)

• mask: Are actors colliding when checking if their image masks are overlapping.

property color

Fill color of the actor as RGBA tuple.

Setting this value also enables filling on the costume.

Notes

• Alias: Actor.color

• Filling an image costume replaces the visible image content.

property costume: Costume

Gets the costume of the actor, if available.

property costume_count: int

Returns number of costumes of actor, 0 if actor has no costume

Examples

Add costume and count costumes

from miniworlds import *
world = World()
actor = Actor()
initial_count = actor.costume_count  # 0
actor.add_costume((255,0,0,0))
final_count = actor.costume_count  # 1
world.run()

Returns:

Number of costumes currently attached to the actor.

Return type:

int

property costumes: CostumesManager

Gets the costume manager

The costume manager can be iterated to get all costumes

classmethod create_on_world(world)

Creates a actor to a specific world

overwritten in subclasses

detect(*args, **kwargs)

Detects if actors are on actor position. Returns the first found actor.

Return type:

Optional[Actor]

Parameters:

• actors – filter by actor type. Enter a class_name of actors to look for heredirection: int = 0, distance: int = 0

• direction – The direction in which actors should be detected.

• distance – The distance in which actors should be detected (Start-Point is actor.center)

Returns:

First actor found by Sensor

Examples

The green robot pushes the yellow robot:

from miniworlds import *

world = TiledWorld(8,3)
actor = Actor((1,1))
actor.add_costume("images/robo_green.png")
actor.orientation = -90
actor.direction = 90

actor2 = Actor((4,1))
actor2.add_costume("images/robo_yellow.png")
actor2.orientation = -90
actor2.direction = -90

@actor.register
def act(self):
    self.move()
    actor = self.detecting_actor()
    if actor:
        actor.move_right()
world.run()

Output:

detect_actor_at(direction=None, distance=0, actors=None)

Detect and return the first actor at a given direction and distance.

Return type:

Actor

detect_actor_in_front(actors=None, distance=1)

Detect and return the first actor directly in front.

Return type:

Actor

detect_actors_at(direction=None, distance=0, actors=None)

Detects a actor in given direction and distance.

Examples

from miniworlds import *
world = World()
wall=Rectangle((200,0))
wall.size = (20, 400)

for i in range(7):
    actor = Circle((10,i*60 + 20))
    actor.range = i * 10
    @actor.register
    def act(self):
        if not self.detect_actors_at(self.direction, self.range):
            self.direction = "right"
            self.move()

world.run()

Parameters:

• direction – The direction in which actors should be detected.

• distance – The distance in which actors should be detected (Start-Point is actor.center)

Return type:

list

Returns:

A list of actors

detect_actors_in_front(actors=None, distance=1)

Detect all actors directly in front of this actor.

Return type:

list

detect_all(actors=None, direction=0, distance=0)

Detects if actors are on actor position. Returns a list of actors.

Return type:

List[Actor]

Parameters:

• actors – filter by actor type. Enter a class_name of actors to look for here

• direction – The direction in which actors should be detected.

• distance – The distance in which actors should be detected (Start-Point is actor.center)

Returns:

All actors found by Sensor

detect_borders(distance=0)

Detects borders

Args: :rtype: List

distance: Specifies the distance in front of the actuator to which the sensors reacts.

Returns:

True if border was found.

detect_color(color=None)

Detects colors in world-background at actor center-position

Return type:

bool

Parameters:

color – color as tuple

Returns:

True, if color was found

detect_color_at(direction=None, distance=0)

Detects colors in world-background at actor-position

Return type:

Union[Tuple, List]

Parameters:

• direction – Specifies the direction where the sensors is searching.

• distance – Specifies the distance in front of the actuator to which the sensors reacts.

Returns:

All colors found by Sensor

detect_left_border()

Does the actor touch the left border?

Return type:

bool

Returns:

True if border was found.

detect_pixel(position)

Is the actor colliding with a pixel?

Return type:

bool

Returns:

True if pixel is below actor

detect_point(position)

Is the actor colliding with a specific (global) point?

Return type:

bool

Warning

If your want to check if an actor detects a specific pixel, use detect_pixel

Returns:

True if point is below actor

detect_rect(rect)

Is the actor colliding with a static rect?

detect_right_border()

Does the actor touch the right border?

Return type:

bool

Returns:

True if border was found.

detect_top_border()

Does the actor touch the top border?

Return type:

bool

Returns:

True if border was found.

detecting_bottom_border()

Does the actor touch the lower border?

Return type:

bool

Returns:

True if border was found.

property direction: int

Directions are handled exactly as in the Scratch programming language, see: Scratch Wiki

The default direction is 0°. All actors are looking "up"

Values for Direction

• 0° or "up": up

• 90° or "right": Move right

• -90° or "left": Move left

• 180° or "down": Move down

• "forward": Current direction

Sets direction of the actor.

You can use an integer or a string to describe the direction

Options

• 0, "up" - Look up

• 90, "right", - Look right

• -90, "left", - Look left

• -180, 180, "down" - Look down

Examples

Move in a direction with WASD-Keys

def on_key_down(self, keys):
    if "W" in keys:
        self.direction = "up"
    elif "S" in keys:
        self.direction = "down"
    elif "A" in keys:
        self.direction = "left"
    elif "D" in keys:
        self.direction = "right"
    self.move()

Move 45°:

from miniworlds import *

world = World(100, 100)
c = Circle ((50,50), 10)

@c.register
def act(self):
    c.direction = 45
    c.move()

world.run()

Move -45°:

from miniworlds import *

world = World(100, 100)
c = Circle ((50,50), 10)

@c.register
def act(self):
    c.direction = -45
    c.move()

world.run()

property direction_at_unit_circle: int

Gets the direction as value in unit circle (0° right, 90° top, 180° left…)

fill(value)

Set fill color for borders and lines

property fill_color

Fill color of the actor as RGBA tuple.

Setting this value also enables filling on the costume.

Notes

• Alias: Actor.color

• Filling an image costume replaces the visible image content.

flip_x()

Flips the actor by 180° degrees. The costume is flipped and the actor’s direction changed by 180 degrees. :rtype: int

Examples

Flip a actor in Example flipthefish.py

from miniworlds import *

world=TiledWorld()
world.columns = 4
world.rows = 1
world.add_background("images/water.png")
fish = Actor()
fish.border = 1
fish.add_costume("images/fish.png")
fish.direction = "right"
fish.orientation = -90
@fish.register
def act(self):
    self.move()

@fish.register
def on_not_detecting_world(self):
    self.move_back()
    self.flip_x()

world.run()

Output:

classmethod from_center(center_position, *args, **kwargs)

Create an actor whose origin is interpreted as center.

classmethod from_topleft(topleft_position, *args, **kwargs)

Create an actor whose origin is interpreted as top-left.

get_distance_to(obj)

Gets the distance to another actor or a position

Return type:

float

Parameters:

obj – Actor or Position

Returns:

The distance between actor (measured from actor.center) to actor or position.

Return type:

float

get_local_rect()

Return actor rect in camera-local coordinates.

Return type:

Rect

has_costume()

Return True when the actor currently has a costume.

Return type:

bool

property height

The height of the actor in pixels.

When the height of a actor is changed, the width is scaled proportionally.

Examples

Create a actor and scale width/height proportionally:

from miniworlds import *

world = World(800,400)

def create_actor(x, y):
t = Actor()
t.position = (x, y)
t.add_costume("images/alien1.png")
t.border = 1
return t

t0 = create_actor(0,0)
t1 = create_actor(50,0)
t1.height = 400
t2 = create_actor(300,0)
t2.width = 180

world.run()

hide()

Hides a actor (the actor will be invisible)

property image: Surface

The image of the actor:

Warning

Warning: You should not directly draw on the image (with pygame functions) as the image will be reloaded during animations

property is_blockable

A actor with the property is_blockable cannot move through actors with the property is_blocking.

property is_blocking

A actor with the property is_blockable cannot move through actors with the property is_blocking.

property is_filled

Is actor filled with color?

property is_flipped: bool

Whether the actor costume is mirrored on the horizontal axis.

is_inside_world()

Checks whether the actor is completely inside the world boundaries.

Returns:

True if the entire actor rectangle is within the world, False otherwise.

property is_rotatable: bool

Defines if the costume of a actor should be rotatable. The actor can still be rotated with the direction property, but its costume won’t be changed

Note

You can also use actor.costume.is_rotatable

Examples

Create a rotatable and a not rotatable actor

from miniworlds import *
world = World()

t1 = Actor((100,100))
t1.add_costume("images/alien1.png")

t2 = Actor((200,200))
t2.add_costume("images/alien1.png")
t2.is_rotatable = False

@t1.register
def act(self):
    self.move()
    self.direction += 1

@t2.register
def act(self):
    self.move()
    self.direction += 1

world.run()

Output:

property last_direction: int

Direction value from the previous frame.

property last_position: Tuple[float, float]

Actor position in last frame

Can be used to track changes.

property layer: int

Defines the layer on which the actor is drawn if several actors overlap.

property local_center: Tuple[float, float]

x-value of actor center-position inside the current camera-screen

move(distance=0, direction=0)

Moves actor distance steps in current direction

Parameters:

distance – Number of steps to move. If distance = 0, the actor speed will be used.

Returns:

The moved actor

Examples

if actor is on the world, move forward:

class Robot(Actor):

    def act(self):
        if self.detecting_world():
            self.move()

move_back(distance)

Moves the actor backward by distance steps (opposite of current direction).

Parameters:

distance – Number of steps to move backward.

Returns:

The actor itself.

Examples

Move back when wall is detected:

def act(self):
    self.move()
    if self.detect(Wall):
        self.move_back(5)

move_in_direction(direction, distance=1)

Moves actor distance steps into a direction or towards a position

Options

• 0, “up” - Look up

• 90, “right”, - Look right

• -90, “left”, - Look left

• -180, 180, “down” - Look down

Parameters:

• direction – Direction as angle

• distance – Detects obj “distance” steps in front of current actor.

Returns:

The actor itself

move_to(position)

Moves actor distance to a specific world_posiition

Parameters:

• position – The position to which the actor should move. The position can be a 2-tuple (x, y)

• world_position (which will be converted to a)

Returns:

The actor itself

Examples

move to (3, 2) on mouse_click

def on_clicked_left(self, position):
    self.move_to((3,2))

move_towards(target)

Move one step toward a target actor or position.

move_vector(vector)

Moves actor in direction defined by the vector

Returns:

The moved actor

new_costume()

Create and attach a new empty costume to this actor.

next_costume()

Switches to the next costume of actor

Returns:

The new costume

on_clicked_left(position)

The mouse is on top of a actor and mouse was clicked.

Examples

Registering a on_click event:

actor = miniworlds.Actor((2,2))

@actor.register
def on_clicked_left(self, position):
    # Handle click event

Parameters:

position (tuple) – Actual mouse position as tuple (x,y)

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_clicked_right(position)

The mouse is on top of a actor and mouse was clicked.

Examples

Registering a on_click event:

actor = miniworlds.Actor((2,2))

@actor.register
def on_clicked_right(self, position):
    # Handle right click event

Parameters:

position (tuple) – Actual mouse position as tuple (x,y)

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_detecting_actor(actor)

on_detecting_actor is called, when actor is detects a actor on same position

Parameters:

actor (Actor) – The found actor

Examples

Register detect_actor event

@player.register
def on_detecting_actor(self, actor):
    # Check if detected actor is the target
    if actor == player2:
        self.move()  # React to detection

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_detecting_borders(borders)

on_detecting_border is called, when actor is near a border

Parameters:

borders (List) – A list of strings with found borders, e.g.: [‘left’, ‘top’]

Examples

Register on_detecting_border_event:

@player.register
def on_detecting_borders(self, borders):
    # Handle border detection
    if "left" in borders:
        self.x = 1  # Move away from left edge

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_detecting_world()

on_detecting_world is called, when actor is on the world

Examples

Register on_detecting_world method:

@player.register
    def on_detecting_world(self):
        # Actor is inside the world

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_key_down(key)

Called once when a key is pressed.

Register on_key_down_<letter> (for example on_key_down_a) if you want to react to a specific letter only.

For arrow keys use on_key_down_left, on_key_down_right, on_key_down_up, on_key_down_down.

Parameters:

key – List of key name variants, for example ['A', 'a'] or ['left'] for the left arrow key.

Examples

Move with WASD keys:

@player.register
def on_key_down(self, key):
    if 'W' in key or 'up' in key:
        self.direction = 'up'
    elif 'S' in key or 'down' in key:
        self.direction = 'down'
    elif 'A' in key or 'left' in key:
        self.direction = 'left'
    elif 'D' in key or 'right' in key:
        self.direction = 'right'
    self.move()

Or use dedicated per-key handlers for arrow keys:

@player.register
def on_key_down_left(self):
    self.direction = 'left'
    self.move()

@player.register
def on_key_down_right(self):
    self.direction = 'right'
    self.move()

@player.register
def on_key_down_up(self):
    self.direction = 'up'
    self.move()

@player.register
def on_key_down_down(self):
    self.direction = 'down'
    self.move()

on_key_pressed(key)

Called repeatedly every frame while a key is held down.

This is the right choice for smooth, continuous movement. Like on_key_down, this event supports per-letter handlers such as on_key_pressed_w or on_key_pressed_left for the left arrow key.

Parameters:

key – List of key name variants currently held, for example ['W', 'w'] or ['up'].

Examples

Smooth movement with arrow keys (fires every frame while held):

@player.register
def on_key_pressed(self, key):
    if 'left' in key:
        self.x -= 3
    elif 'right' in key:
        self.x += 3
    elif 'up' in key:
        self.y -= 3
    elif 'down' in key:
        self.y += 3

on_key_up(key)

Called once when a previously pressed key is released.

Parameters:

key – List of key name variants, same format as in on_key_down.

Examples

@player.register
def on_key_up(self, key):
    if 'space' in key:
        player.stop_animation()

on_mouse_leave(position)

Called when the mouse cursor leaves the actor area.

Parameters:

position – The mouse position when it left the actor.

Examples

@actor.register
def on_mouse_leave(self, position):
    self.costume.transparency = 0  # restore normal look

on_mouse_left(position)

Called when the left mouse button is clicked.

The event is triggered for the click itself, independent of whether the click happened on the actor. Use detect_pixel(position) if you only want clicks on the actor body.

Parameters:

position – Current mouse position as (x, y).

on_mouse_left_down(position)

Called when the left mouse button is pressed down.

on_mouse_left_released(position)

Method is called when left mouse key is released.

Examples

You can use on_mouse_left_release to implement a drag_and_drop event

from miniworlds import *

world = World(200, 200)
circle = Circle((30, 30), 60)
circle.direction = 90
circle.dragged = False

@circle.register
def on_mouse_left(self, mouse_pos):
    if self.detect_pixel(mouse_pos):
        self.dragged = True

@circle.register
def on_mouse_left_released(self, mouse_pos):
    if not world.is_mouse_pressed():
        self.dragged = False
        self.center = mouse_pos

world.run()

Output:

Parameters:

position (tuple) – Actual mouse position as tuple (x,y)

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_mouse_motion(position)

Called when the mouse moves.

The event is triggered for movement events in general. Use detect_pixel(position) if you only want motion over the actor body.

Parameters:

position – Current mouse position as (x, y).

on_mouse_over(position)

Called when the mouse cursor enters or moves over the actor area.

Parameters:

position – Current mouse position as (x, y).

Examples

@actor.register
def on_mouse_over(self, position):
    self.costume.transparency = 100  # semi-transparent on hover

on_mouse_right(position)

Called when the right mouse button is clicked.

Use detect_pixel(position) if you only want clicks on the actor body.

Parameters:

position – Current mouse position as (x, y).

on_mouse_right_down(position)

Called when the right mouse button is pressed down.

on_mouse_right_released(position)

Method is called when right mouse key is released.

The behavior and arguments match on_mouse_left_released.

Parameters:

position (tuple) – Actual mouse position as tuple (x,y)

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_not_detecting_world()

Called when the actor is not touching the world (i.e. outside world bounds).

Useful to remove actors that fly off-screen.

Examples

Remove actor when it leaves the world:

@rocket.register
def on_not_detecting_world(self):
    self.remove()

Raises:

NotImplementedOrRegisteredError – The error is raised when method is not overwritten or registered.

on_shape_change()

Hook called when actor shape-related properties change.

property orientation: float

Costume orientation offset in degrees.

property origin

Current origin mode used for size and position operations.

point_towards_actor(other)

Actor points towards another actor.

Return type:

int

Parameters:

other – The other actor

Returns:

The new direction

point_towards_position(destination)

Actor points towards a given position

Return type:

Union[int, float]

Parameters:

destination – The position to which the actor should pointing

Returns:

The new direction

Examples

Point towards mouse_position:

def act(self):
    mouse = self.world.mouse.get_position()
if mouse:
    self.point_towards_position(mouse)
self.move()

property position: Tuple[float, float]

The position of the actor as Position(x, y)

register_sensor(*args, **kwargs)

This method is used for the @register_sensor decorator.

remove(kill=True)

Removes this actor from world

Examples: :rtype: defaultdict

Removes robots in thecrash.py :

def act(self):
    self.move()
    other = self.detecting_actor(distance = 0, actor_type=Robot)
if other:
    explosion = Explosion(position=self.position)
    self.remove()
    other.remove()

remove_costume(source=None)

Removes a costume from actor

Parameters:

source – The index of the new costume or costume-object. Defaults to actual costume

reset_costumes()

Remove all costumes and reset appearance state.

scale_height(value)

Scale actor height by a factor.

scale_width(value)

Scale actor width by a factor.

send_message(message)

Sends a message to world.

The message can be received with the on_message-event

Examples

Send and receive messages:

from miniworlds import *

world = World()

actor1 = Actor((2, 2))
actor1.add_costume((100,0,100,100))

@actor1.register
def on_message(self, message):
    # Handle the message received
    self.send_message(f"got: {message}")

actor2 = Actor((100,100))
actor2.send_message("Hello from actor2")

@actor2.register
def on_key_down_s(self):
    self.send_message("Hello")
world.run()

Parameters:

message (str) – A string containing the message.

set_background_color(color)

Set a background color behind the actor costume image.

set_costume(costume)

Set the current costume from an index, source, or appearance object.

set_direction(direction)

Actor points in given direction.

You can use a integer or a string to describe the direction

Return type:

float

Parameters:

string (The direction as integer or)

Options

• 0, "up" - Look up

• 90, "right", - Look right

• -90, "left", - Look left

• -180, 180, "down" - Look down

Examples

Move in a direction with WASD-Keys

def on_key_down(self, keys):
    if "W" in keys:
        self.direction = "up"
    elif "S" in keys:
        self.direction = "down"
    elif "A" in keys:
        self.direction = "left"
    elif "D" in keys:
        self.direction = "right"
    self.move()

set_position(value)

Set actor position in world coordinates.

set_size(value)

Set actor size as (width, height) in pixels.

set_world(new_world)

Move the actor to another world and return the actor.

Return type:

Actor

show()

Displays a actor ( an invisible actor will be visible)

property size: tuple

Size of the actor

property static

Should actor react to events? You can turn this option off for additional performance boost.

stop_animation()

Stops current animation. Costume is_animated is set to False

Examples

from miniworlds import *

world = World(columns=280, rows=100)
robo = Actor(position=(0, 0))
robo.costume.add_images(["images/1.png", "images/2.png","images/3.png","images/4.png"])
robo.size = (99, 99)
robo.animate_loop()
@timer(frames = 100)
def stop():
    robo.stop_animation()
world.run()

property stroke_color

Border color as RGBA tuple.

Notes

• Set Actor.border to a value greater than 0 for a visible border.

• Alias: Actor.stroke_color.

switch_costume(source)

Switches the costume of actor

Return type:

Costume

Parameters:

source – Number of costume or Costume object

Examples

Switch a costume:

from miniworlds import *

world = World(100,60)
t = Actor()
costume =t1.add_costume("images/1.png")
t.add_costume("images/2.png")
t.switch_costume(1)

@timer(frames = 40)
def switch():
    t1.switch_costume(0)

world.run()

Returns:

The new costume

switch_origin(value)

Switch actor origin while preserving the visual on-screen position.

property topleft: Tuple[float, float]

Top-left position of the actor in world coordinates.

property topleft_x: float

x-value of actor topleft-position

property topleft_y: float

y-value of actor topleft-position

turn_left(degrees=90)

Turns actor by degrees degrees left :rtype: int

Options:

• You can set the value actor.is_rotatable = False if you don’t want the actor to be rotated.

Examples

from miniworlds import *

world = World(100, 100)
t = Actor()
t.add_costume("images/arrow.png")
t.size = (100,100)

@t.register
def act(self):
    t.turn_left(1)

world.run()

Output:

Parameters:

degrees – degrees in left direction

Returns:

New direction

turn_right(degrees=90)

Turns actor by degrees degrees right

Examples

from miniworlds import *

world = World(100, 100)
t = Actor()
t.add_costume("images/arrow.png")
t.size = (100,100)

@t.register
def act(self):
    t.turn_left(1)

world.run()

Output:

Options:

• You can set the value actor.is_rotatable = False if you don’t want the actor to be rotated.

Parameters:

degrees – degrees in left direction

Returns:

New direction

undo_move()

Undo the last move. Moves the actor to the last position and resets direction.

Returns:

The moved actor

Examples

move_back when field is blocked:

def on_detecting_wall(self, wall):
    self.undo_move()

property visible

Whether the actor is currently visible.

property width

The width of the actor in pixels.

When the width of a actor is changed, the height is scaled proportionally.

Examples

Create a actor and scale width/height proportionally:

from miniworlds import *

world = World(800,400)

def create_actor(x, y):
t = Actor()
t.position = (x, y)
t.add_costume("images/alien1.png")
t.border = 1
return t

t0 = create_actor(0,0)
t1 = create_actor(50,0)
t1.height = 400
t2 = create_actor(300,0)
t2.width = 180

world.run()

property world

World this actor belongs to.

property x: float

The x-value of a actor

property y: float

The y-value of a actor
